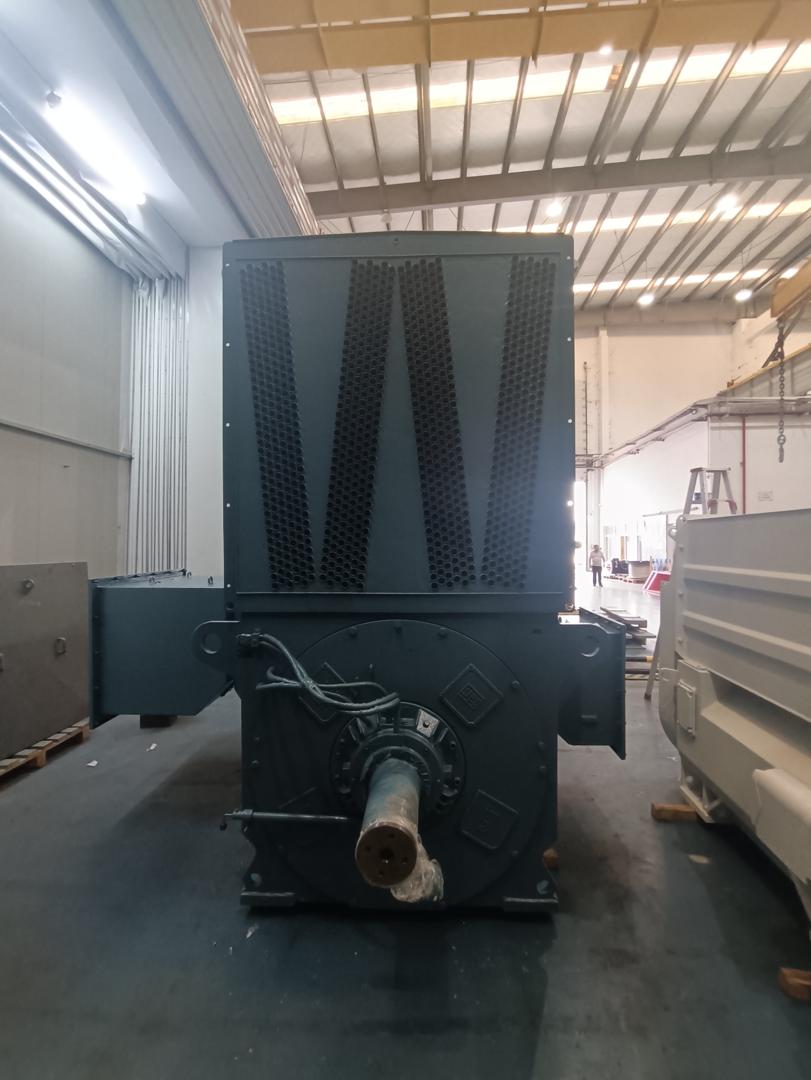

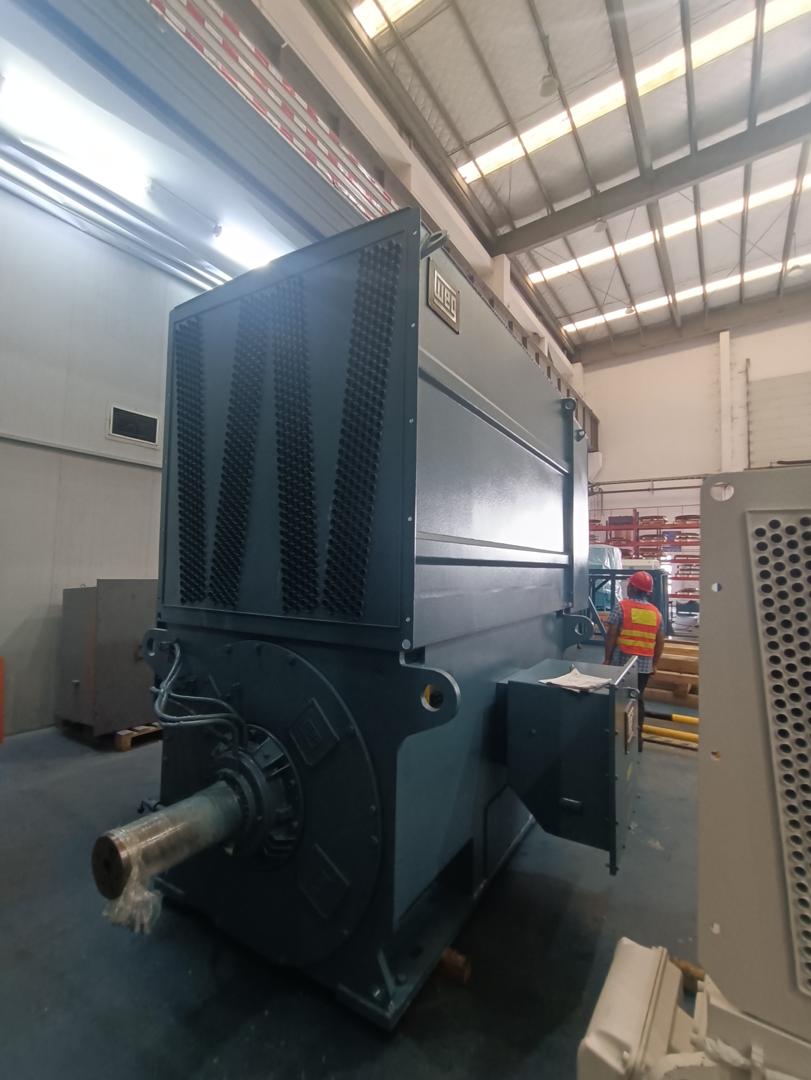

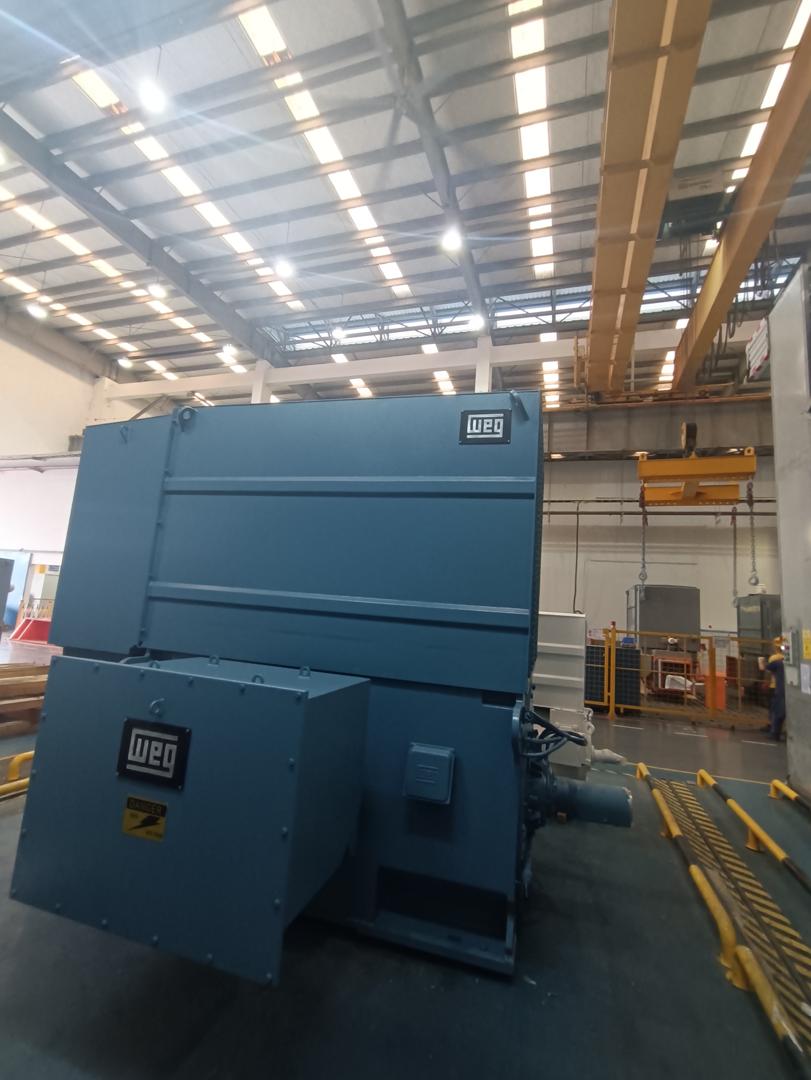

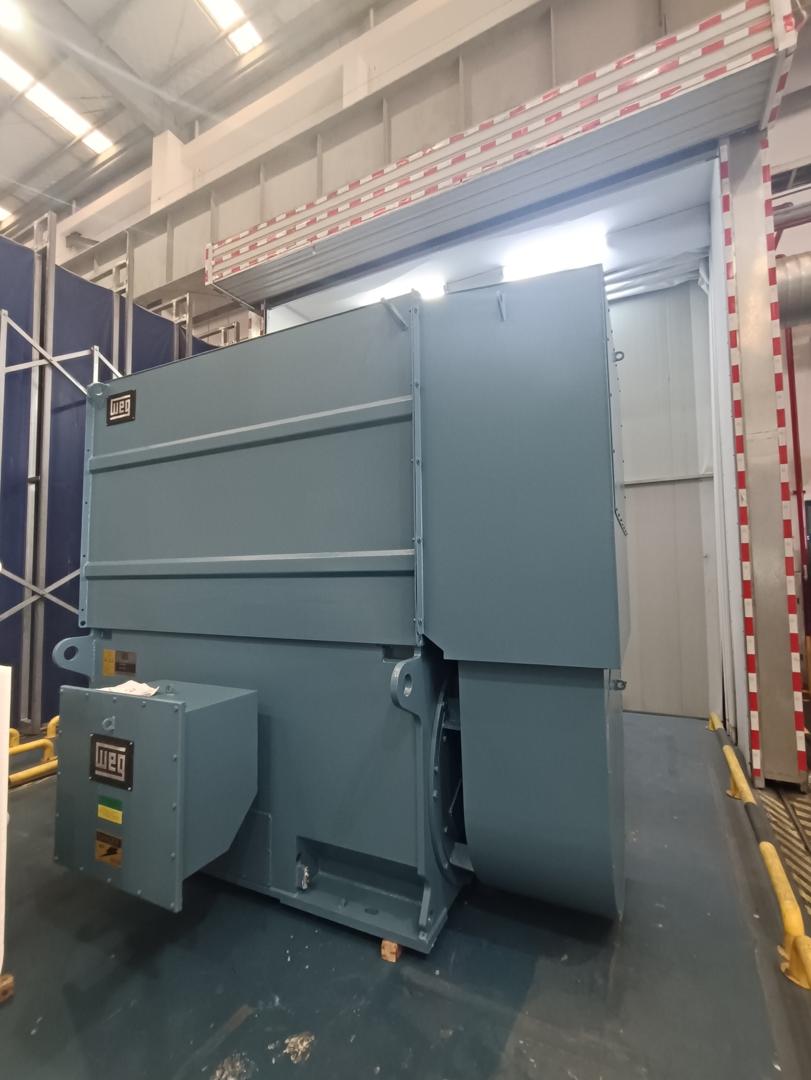

WEG high motor
The hot-selling WEG Wangao motor is matched with major steel mills and rolling mills to produce non-ferrous metals such as steel bars, H-beams, strip steel, aluminum coils, etc.
Center height: 630B output power: 2700 kW frequency: 50Hz rod number: 8 rated speed: 744 rpm rated voltage: 6600V rated current: 282.2 A LRC(p.u.):6.2 design: not applicable to locking rotor torque: 95% rated torque: 34657 Nm fault torque: 250% insulation grade: F temperature rise: B grade usage factor: 1.00 load: S1 power factor: 0.87 efficiency: 96.2% locked-rotor time: 22 seconds frame: 630B output power: 2700 kW frequency: 50Hz rod number: 8 rated speed: 744 rpm sliding: 0.8% rated voltage: 6600V connection: Y rated current: 282.2 A rotor voltage: not applicable rotor current: not applicable locked-rotor current: 1750 A LRC(p.u.):6.2 kVA/kW:7.41 no-load current: 76.19A rated torque: 34657 Nm Locking Rotor Torque: 95% Fault Torque: 250% Insulation Class: F Temperature Rise: Class B Usage Coefficient: 1.00 Turnlock Time: 22 Seconds Load: S1 Ambient Temperature: 40°C Altitude: 1300 m Protection Class: IP55 Cooling: IC611 Installation: B3R Vibration: A 2.8mm/s rms Moment of Inertia: 461 kgm Noise Level: 84 dB(A),tol:3 dB(A Rotation Direction: two starting modes: DIRECT coupling: direct
